Product Description

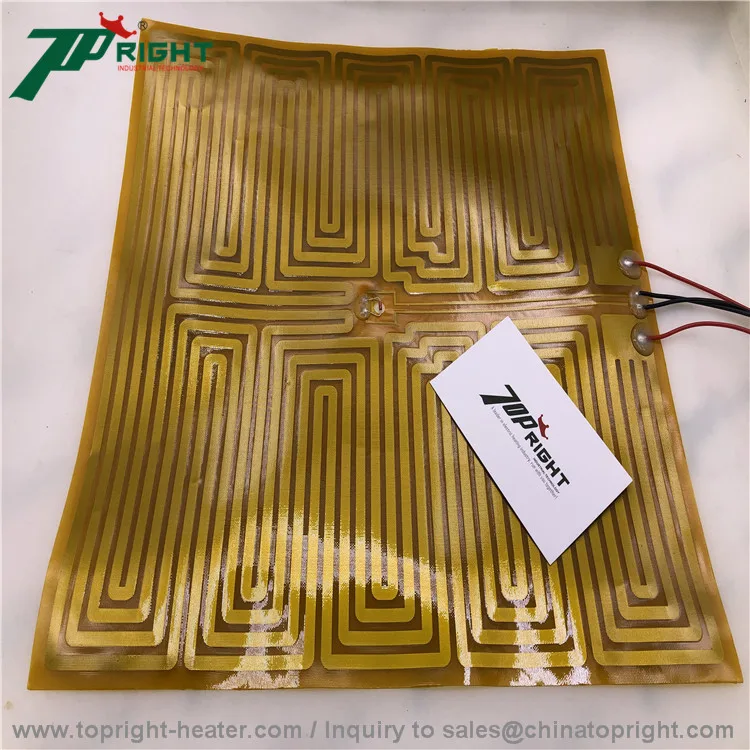

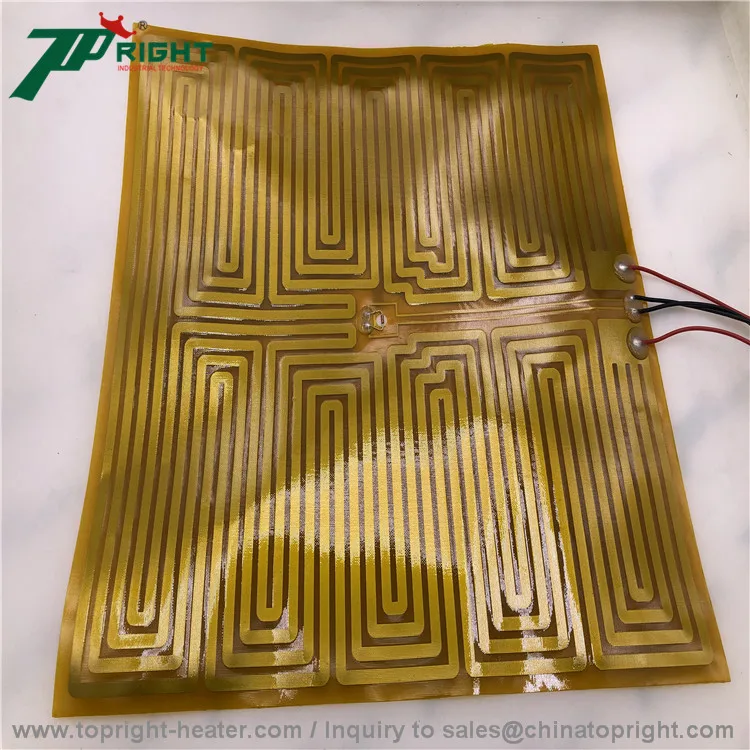

Kapton Heater Description:
Kapton insulated heaters are available in a variety of shapes, sizes, and wattages. Polyimide Film offers a high degree of resistance to chemicals, and has excellent outgasing properties in high vacuum environments.
Polyimide is an organic polymer with very high dielectric capability and thin profile, while providing superior resistance to most solvents, oils, and radiation. In connection with these features, kapton heater is very ideal for applications with space and weight limitation, or where the heater will be exposed to chemical or oil.
Kapton heater also allows easy visual inspection on the internal structures. Pressure-sensitive adhesive (PSA) backing surface is standard, but special adhesives or mounting holes can be customized as customer
requirement.
Detailed Images
Specification of Polyimide (kapton) Heaters:
Working voltage: 12 - 400V
Working temperature: -200°C - 200°C
Watt density: 1.1-6.5w/cm2
Mounting: PSA or mechanical
Max. size: 500x600mm
Thickness: ≤0.25mm
Exit: teflon, kapton or silicone insulated leads
Related Products
Application
Application of kapton heaters:
Medical diagnostic instruments: Heat sample trays, reagent bottles, etc.
Stabilize optoelectronic components
Test or simulate integrated circuits
Enable cold weather operation of outdoor electronics such as laptap, ATM, LCD's
Protect aircraft electronic and mechanical devices in cold weather / area.
