Hydraulic conveyor belt pvc floor cutting press

Overview

Quick Details

Condition:New

Applicable Industries:Home Use, Shoe industry

After Warranty Service:Video technical support, Spare parts

Local Service Location:Viet Nam, India

Showroom Location:Viet Nam, India

Video outgoing-inspection:Provided

Machinery Test Report:Provided

Marketing Type:Ordinary Product

Warranty of core components:1 Year

Core Components:Motor

Place of Origin:China

Brand Name:Jeakar

After-sales Service Provided:Video technical support

Warranty:1 year

Product name:pvc floor cutting press

Model number:JK-THAC-40

Working table size::1800*500MM

Material width::1600mm

Voltage:380v/220v

Motor power::4KW

Hydraulic oil capacity:140L

Travel stroke::50-170mm

Usage:Nonmetal Cutting

PRODUCT DESCRIPTION

Hydraulic traveling head press cutting machine for shoe production

1). Automatic traveling head conveyor belt cutting machine is widely used in a variety of industry molding die for all kinds of
non-metallic materials cutting work.2). Double cylinder, precision four-column double crank connecting rod balance structure, to ensure that each cutting position of
the same depth of the cut.
3). Unique set structure, with the cutting knife and cut the depth of the set, so that stroke adjustment is simple and accurate.
4). Cut the pressure plate to contact the cutter when the slow cut, so that the cutting of the material between the top and bottom
there is no size error.
5). All the sliding parts of the central oil supply automatic lubrication system to ensure that the machine's life and accuracy.
6). Travel head is automatically moving ,easy to operate the machine .And high efficiency.

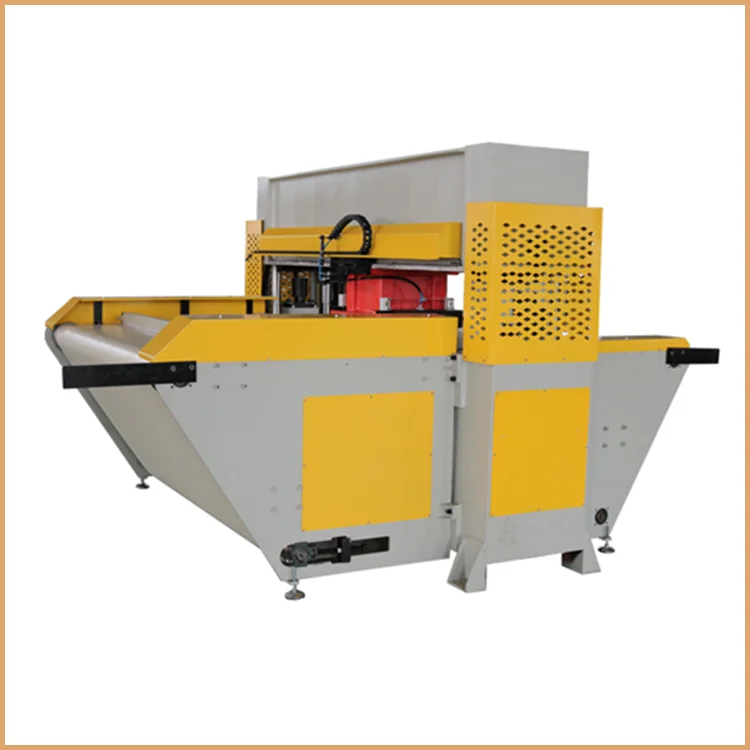

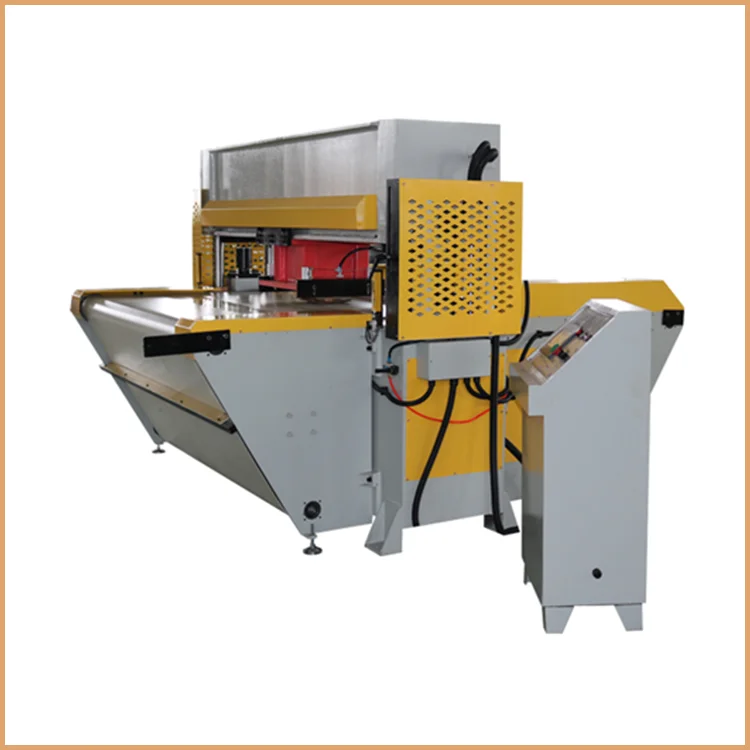

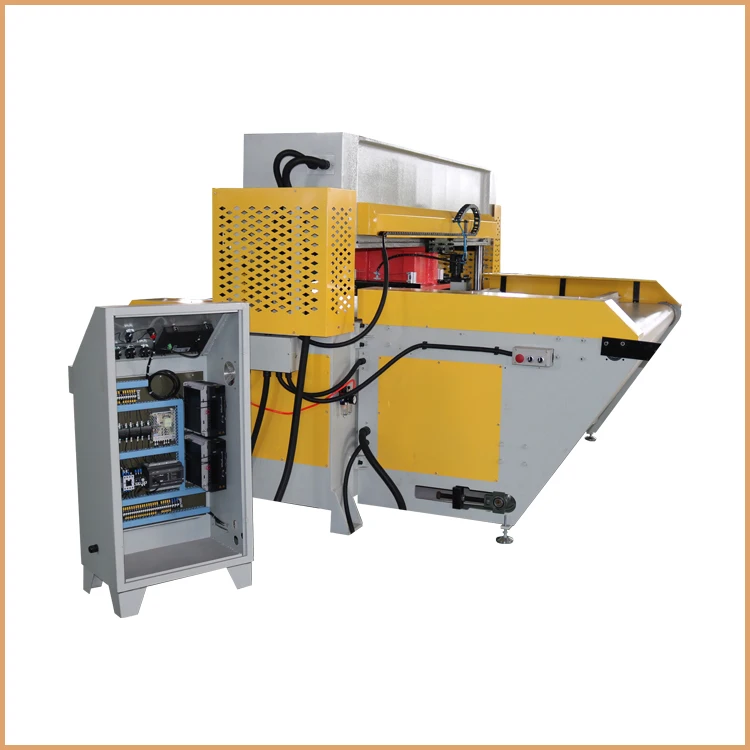

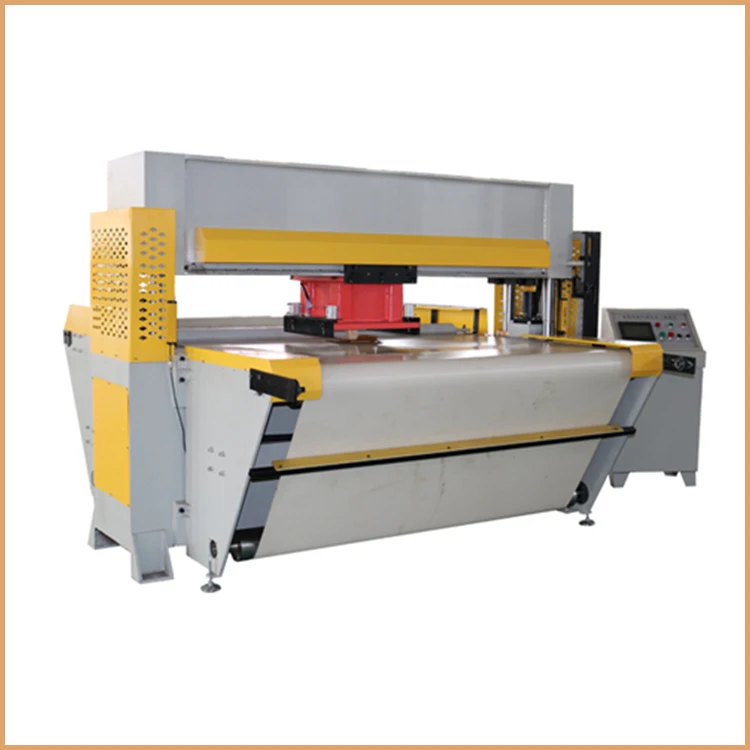

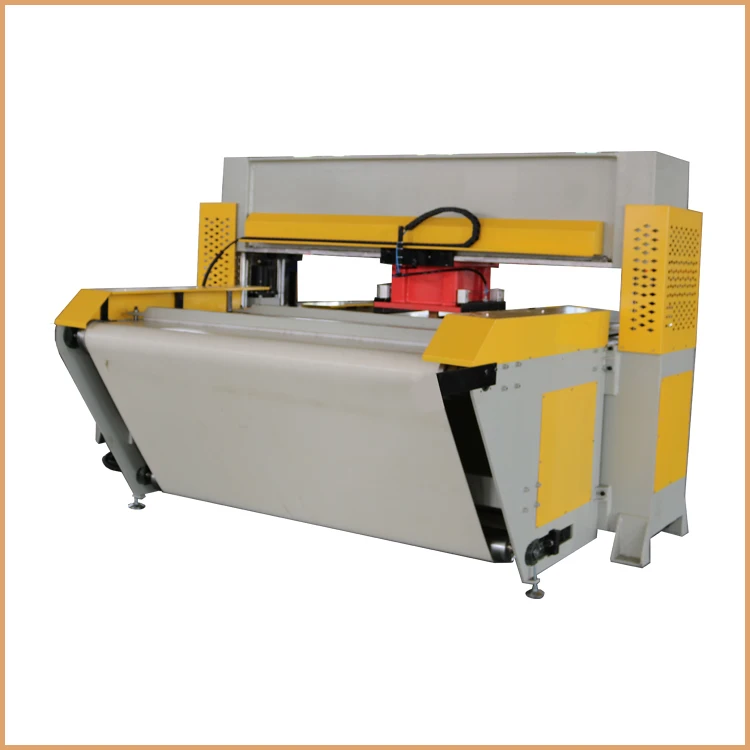

MACHINE PICTURE

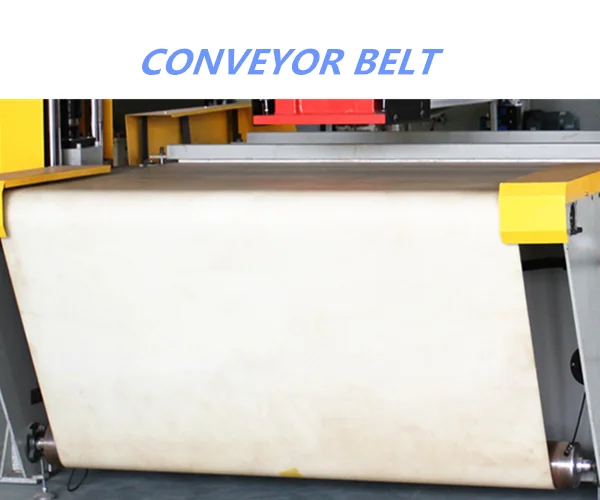

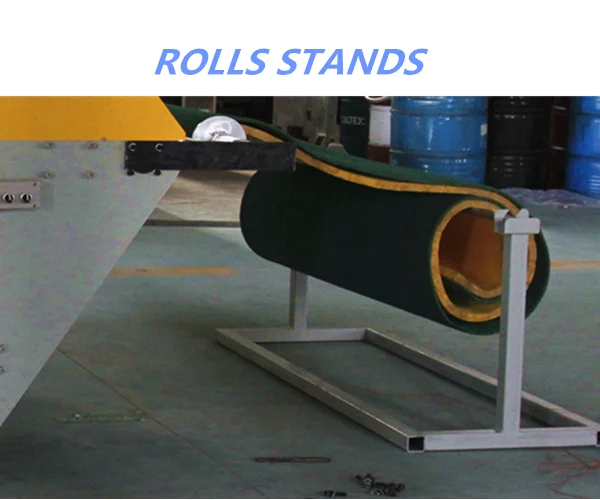

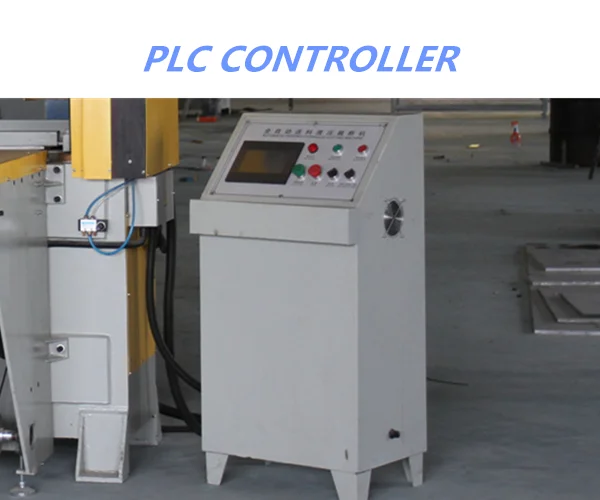

DETAIL IMAGES

SAMPLE PICTURE

TECHNICAL PARAMETER
