WZP Pt1000 temperature sensor resistance thermocouple temperature sensor pt1000

Product Description

PT100 Sensor Technical information:

As for the thermocouple, we split the word: Pt and 100. Pt is the chemical symbol for Platinum, 100 is the resistance in Ohm of the Pt100 at 0 °C. The resistance changes (fearly linear) with temperature are: 0.385 Ohm/°C for European and 0.392 Ohm/°C for American elements. So, by measuring the resistance we can calculate the temperature. Never use a European Pt100 with an American instrument unless you know that it is set for the right conversion factor (usually called 'alpha'). In english a Pt100 is also called a RTD element, meaning Resistance Temperature Detector.

An RTD or Pt100 sensor is connected with two, three or four wires to the measuring device. we learned that we are in fact measuring resistance to determine the temperature. Now when measuring the resistance of the sensing element, we also measure the resistance of the leads and cables used. This gives an error! To compensate for this, the three wire type (bridge) is used, giving enough accuracy in most industrial applications. Even better accuracy is possible with a four wire Pt100 (laboratory applications). Our Pt100 panel mounted indicators have an offset compensation when using two wire sensors.

If you want high accuracy, for example better then 0.5°C between 0 and 100°C, go for the Pt100.

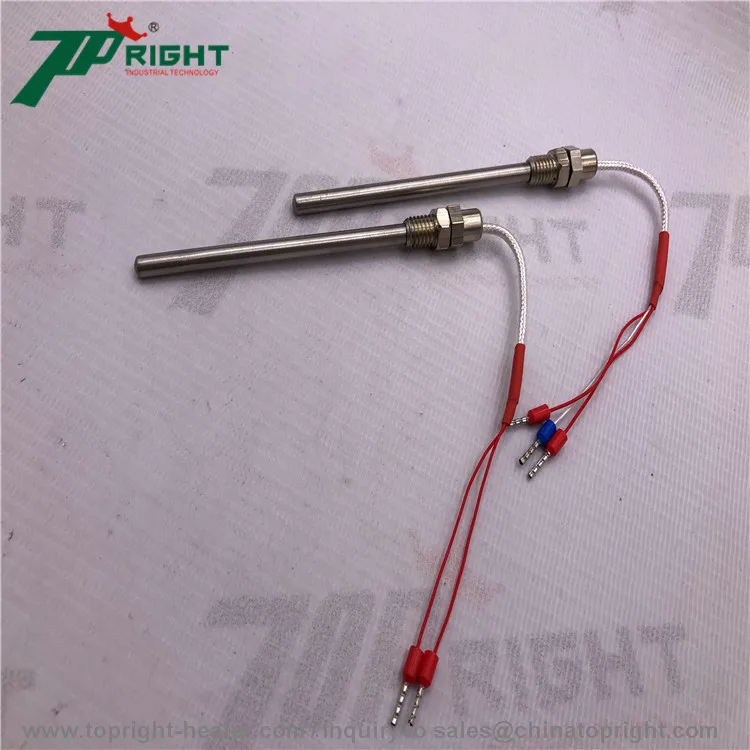

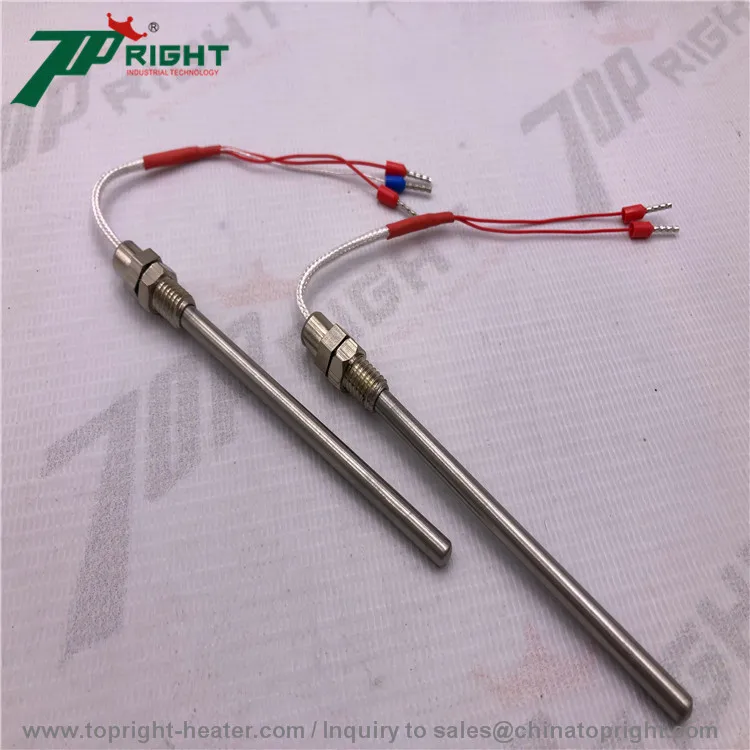

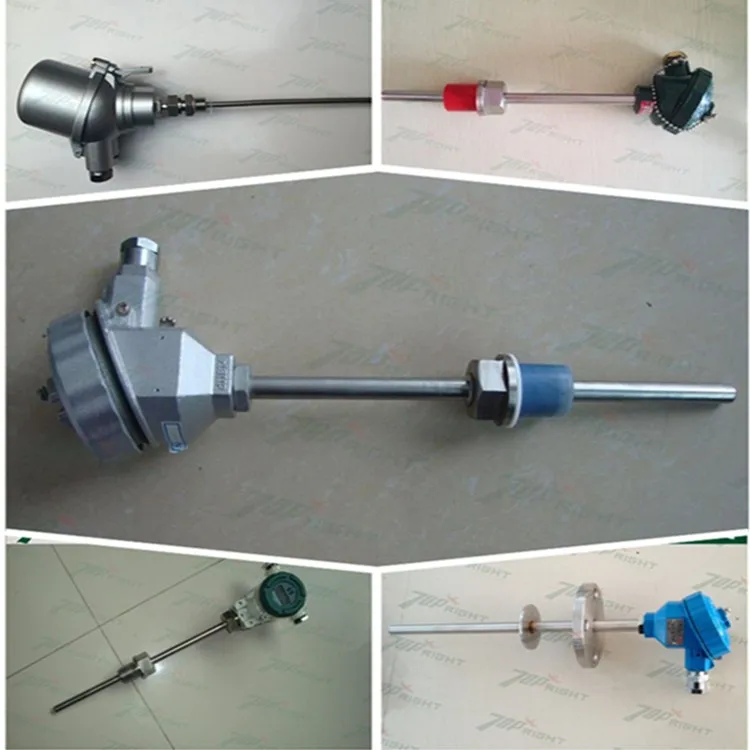

Detailed Images

What is the difference between 2, 3 and 4 wire Pt100 sensors?

An RTD or Pt100 sensor is connected with two, three or four wires to the measuring device. From What is a Pt100? we learned that we are in fact measuring resistance to determine the temperature. Now when measuring the resistance of the sensing element, we also measure the resistance of the leads and cables used. This gives an error! To compensate for this, the three wire type (bridge) is used, giving enough accuracy in most industrial applications. Even better accuracy is possible with a four wire Pt100 (laboratory applications). Our Pt100 panel mounted indicators have an offset compensation when using two wire sensors.

pt100

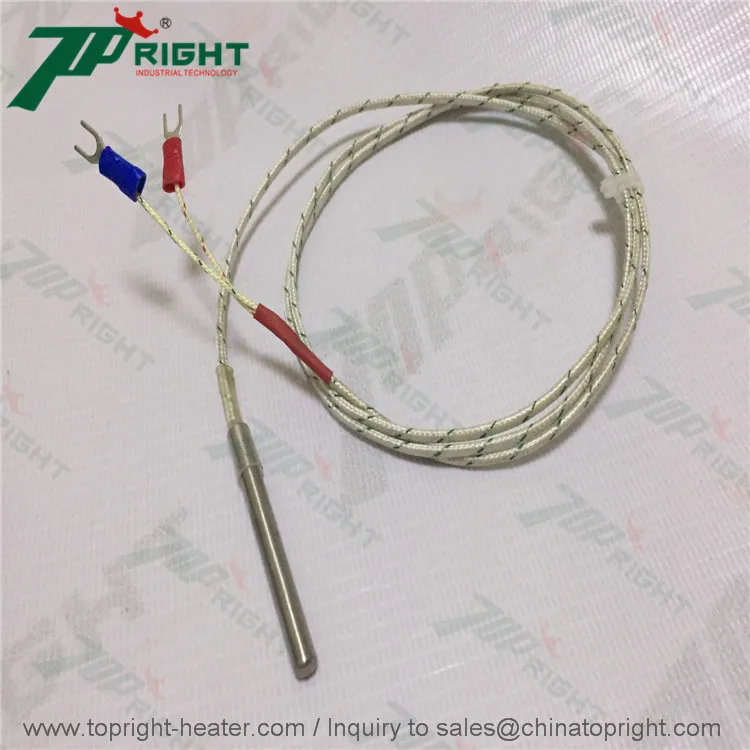

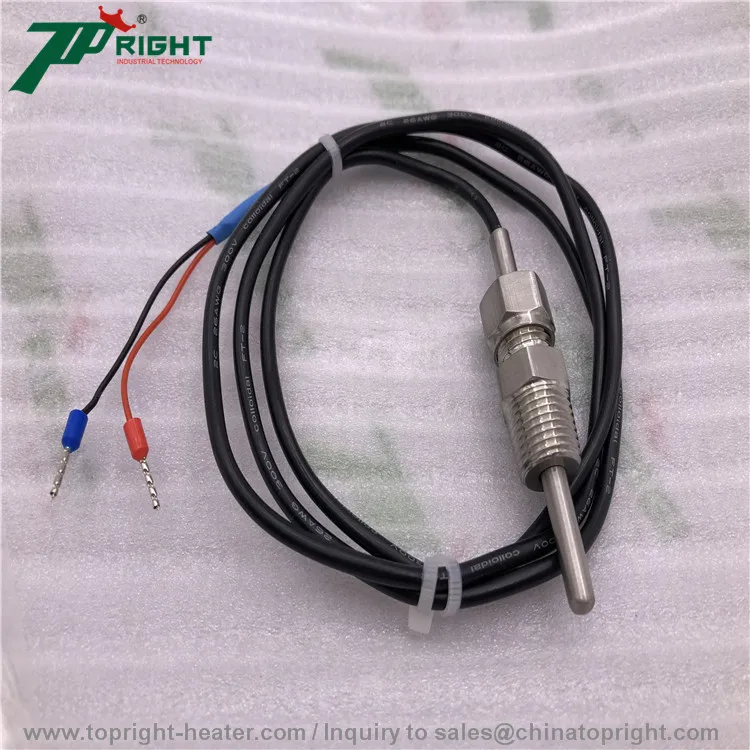

Probe dia.5x50mm, 2 wires

pt100

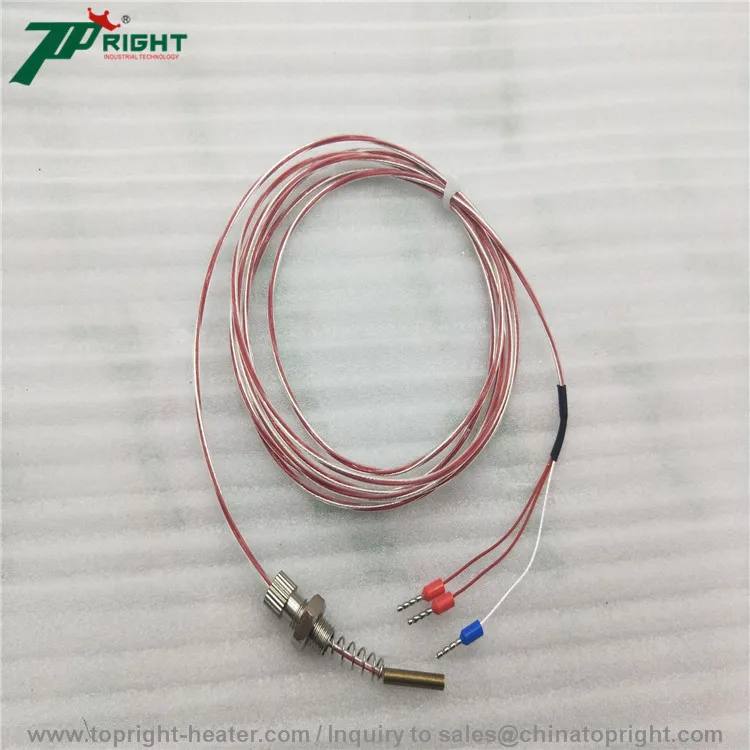

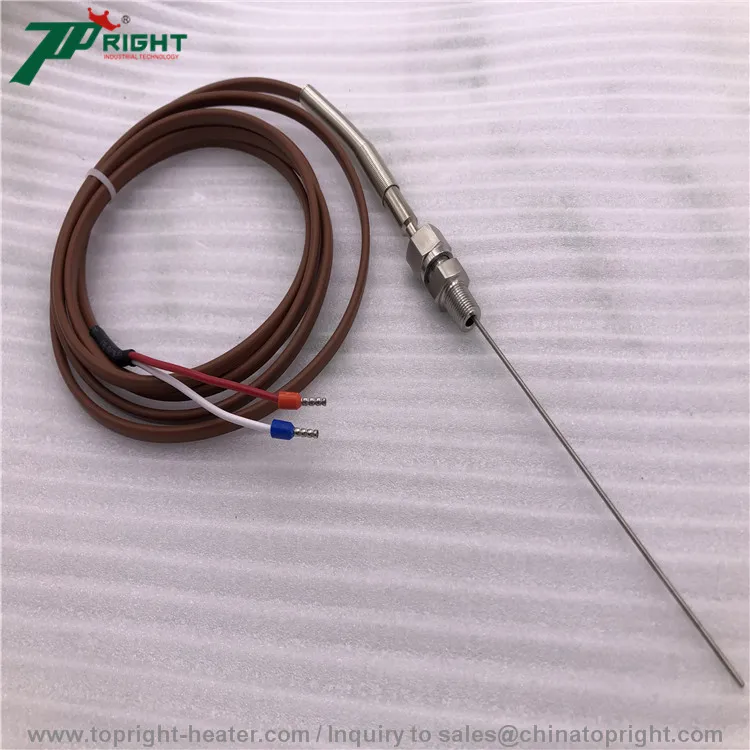

Probe dia 3.5mm with thread, 3wires

pt100

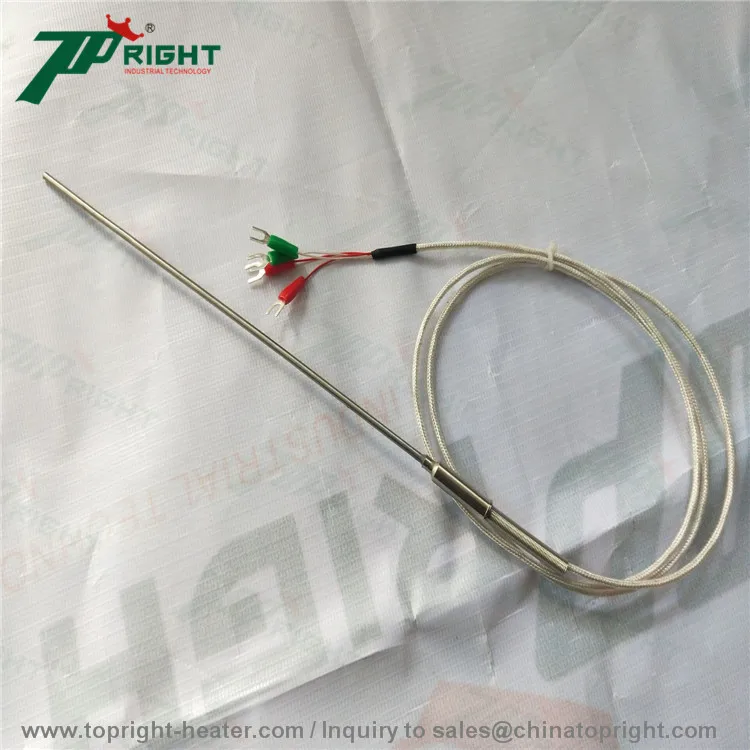

Probe dia.3x210mm, 4 wires

Related Products

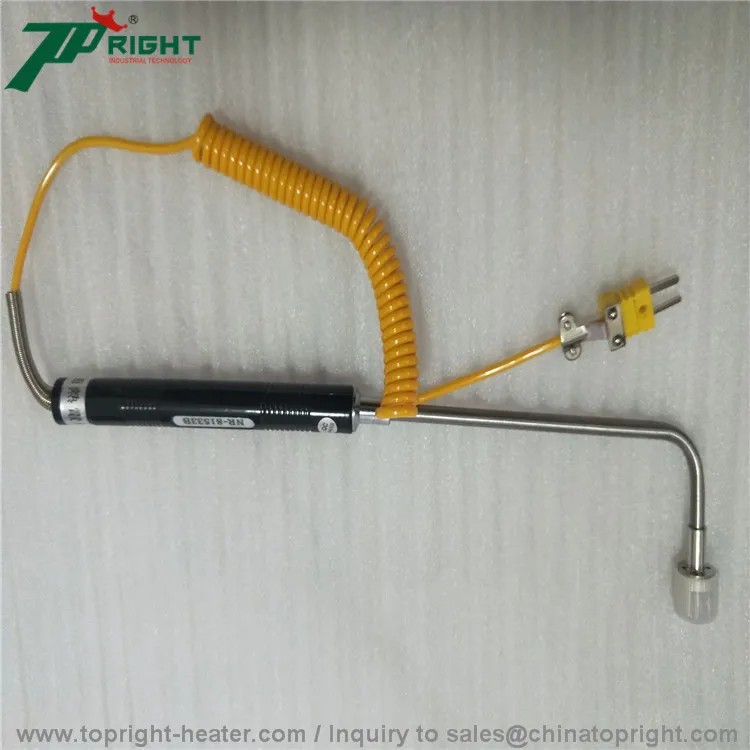

J type thermocouple

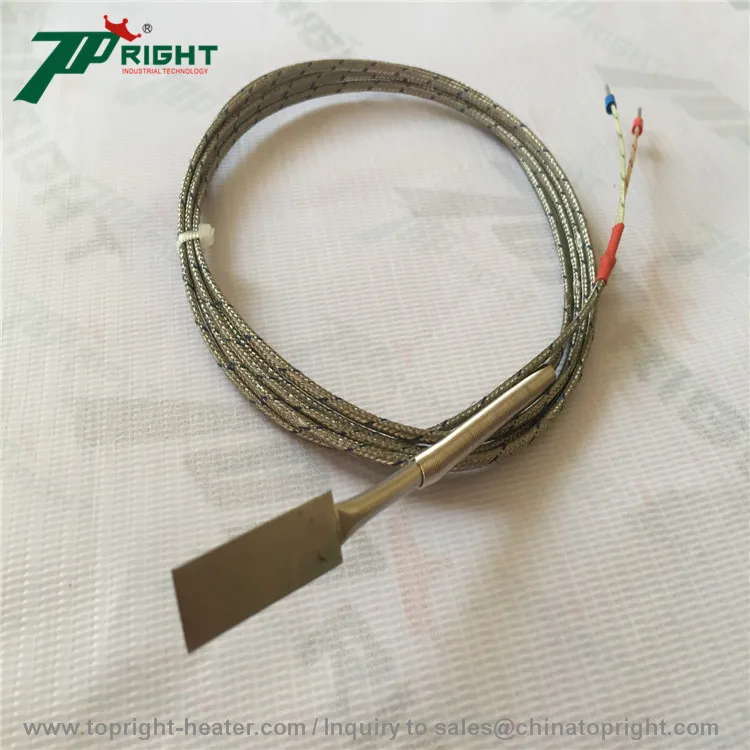

Metal sheet probe

B R S type thermocouple

L650mm, OD12mm

K type thermocouple

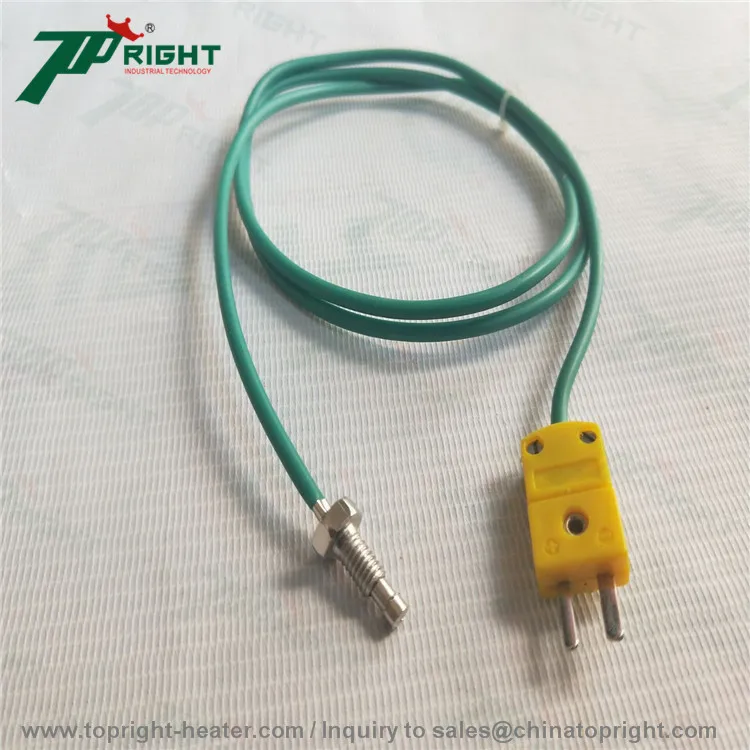

M6 bolt
