vacuum calciner for cleaning plastic material form spinneret plate and die head

Brand:

Price:

Pieces

6,000.00

1 + Pieces

< >

Color:

default

Size:

piece

Quantity:

- + Piece

Total Price:

Depends on the product properties you select

Inquire Now

< >

Product Details
Supplier Detail

Products Description

Vacuum furnaces

GYZ series vacuum furnace, vacuum pyrolysis cleaning oven, is specially for metal parts cleaning, suitable for cleaning the polymer materials filters and strainers, making them be reused after calcination, and saving the production cost. It is also a kind of environmental protection equipment.

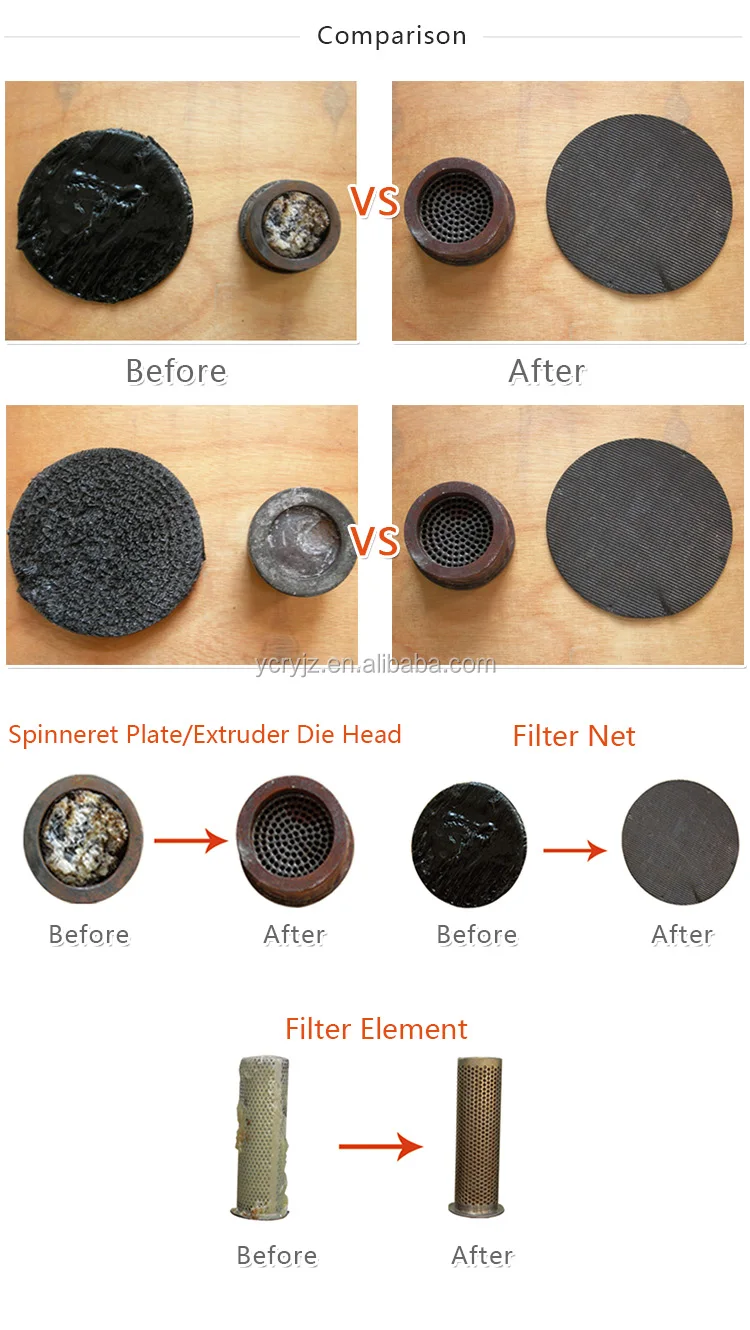

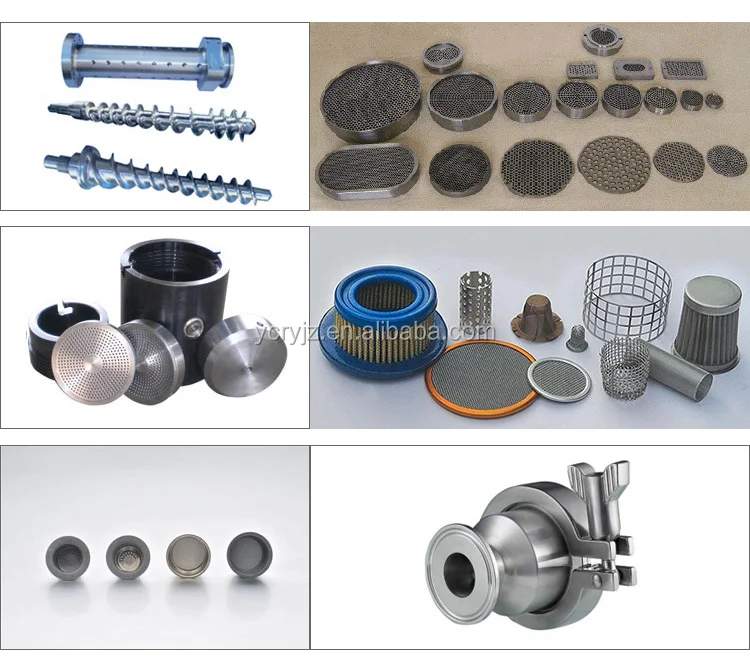

Professional cleaning spinneret plate, filter, filter net, die head, screw etc.

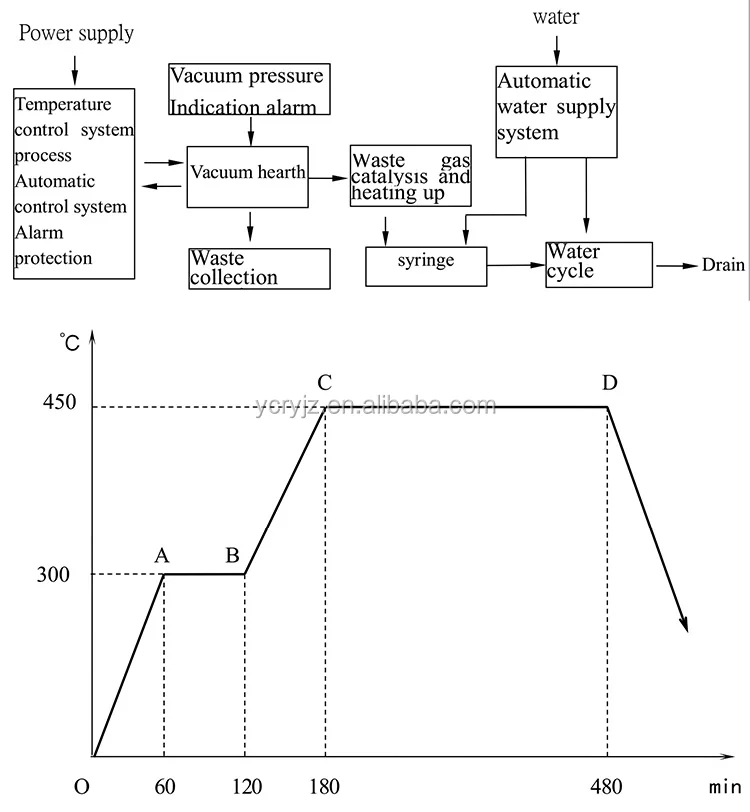

Flow Chart

Cleaning Reference

	Inner chamber size	Cleaned parts	Parts size	Quantity of parts
1	500*1400mm	spinnerets	p170mm * 40 mm	12pcs
	p600*1400mm (clean one kind parts at a time, not all)	spinnerets	36017575mm	6pcs
		spinnerets	360185165mm	6pcs
2		spinnerets	31012040mm	6pcs
		spinnerets	30512025mm	6pcs
		screw	p35*960mm	3pcs
3	p700*1300mm	filter	p250*400mm	4pcs
4	p500*800mm	candle filter	p35*525mm	19pcs
5	p550*5000mm	screw	p111*4700mm	2pcs
6	p800*3200mm (clean all)	spinnerets	p465*64mm	6pcs
6	p800*3200mm (clean all)	spinnerets	p150*35mm	8pcs
7	p600*1900mm (clean all)	spinnerets	p390*145mm	3pcs
7	p600*1900mm (clean all)	spinnerets	p150*35mm	5pcs
8	p600*2000mm	filter	p380*20mm	15pcs
9	p750*1800mm	spin pack	p120*200mm	40pcs
10	p900*1500mm	filter screen	p300*2mm	500pcs
11	p600*1200mm	spinnerets	300150130mm	6pcs
12	p550*1200mm	laser filter	p300*15mm	4pcs
13	p700*1300mm	filter screen	p350*5mm	100-150pcs
14	p850*2600mm	spinnerets	p600*2mm	450-500pcs
15	p600*1100mm	spinnerets	p300*5mm	150pcs
16	p550*600mm	die head	350350200mm	1pc
